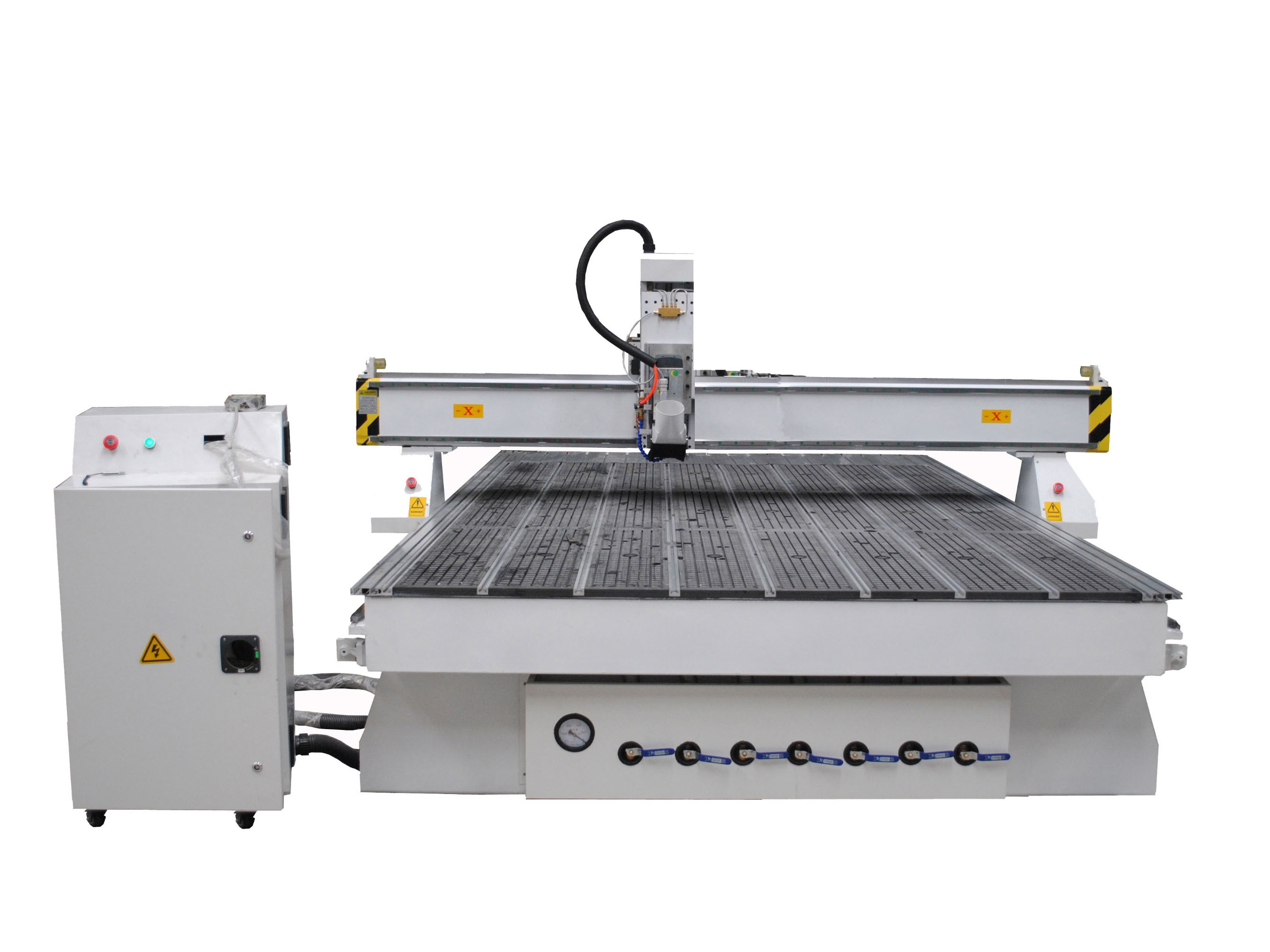

2x3M Size CNC Router GS-2030

inquiry

SPECIFICATION

WORKING   AREA

2000mm×3000mmx200mm

REPEATABILITY

0.04/300mm

SPINDLE POWER

4.5KW(HQD,AIR COOLING)

GUIDE WAY

LINEAR(HIWIN)

ROUTER BITS DIAMETER

Φ3.175 Φ6Φ12.7

POWER

AC380V/50HZ

MOVING   SPEED

25m/min

WORKING   SPEED

20m/min

TRANSMISSION

X Y AXIS HELICAL RACK, Z AXIS BALL SCREW

Spindle   rotating speed

19000rpm

Command

G code*.u00*.mmg*plt

CONTROLLER

DSP

MOTOR

STEP MOTOR

ACCESSORY

DUST COLLECTOR

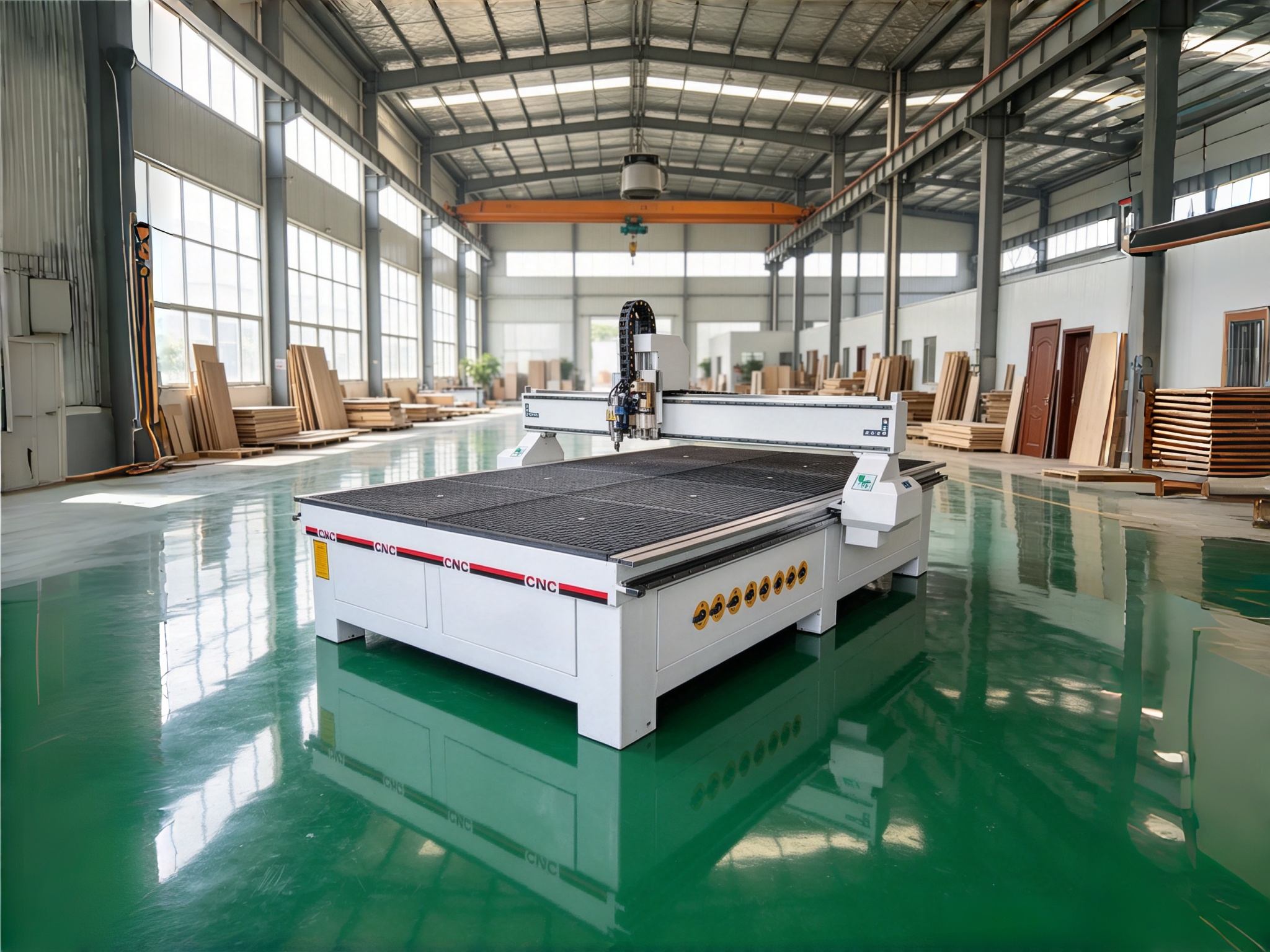

GS-2030 (6)_副本.jpg

◆Lengthen the X and Y axis, can be used for large scale material processing

◆Adopted international leading parts, cost performance is high

◆Vacuum table we allow for both mechanical and vacuum fixture What does this mean:

If you are processing sheets of material such as MDF, melamine, plastic, foam or any other sheet like material, vacuum hold-down is an excellent solution

If you are processing small or irregular shaped products, heavy material, then you may want to utilize mechanical clamps

◆It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly

◆JDM25 is upgraded to meet the requirements of users

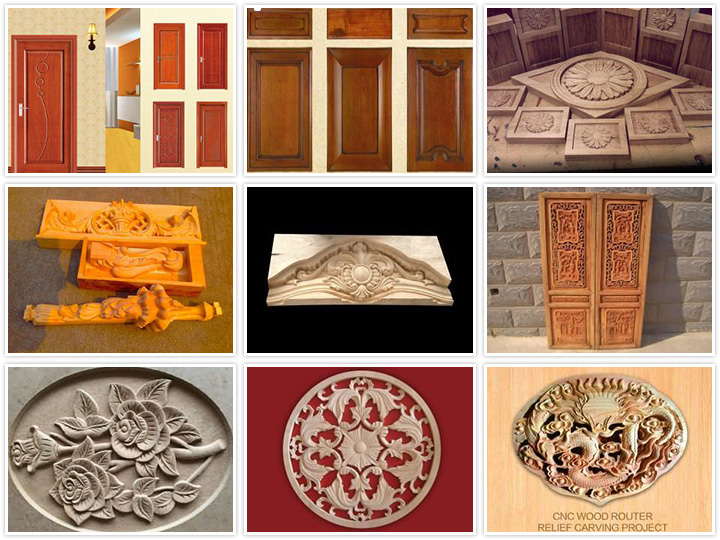

Woodworking, advertising industry, seal industry, craft and gift, art mould, mould

Applicable material: wood, acrylic, double color board, PVC, EVA, ABS board, stone, imitation stone, metal, aluminum mold

Major application fields: furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft

Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door

Mould industry: wooden mould, aviation wooden mould

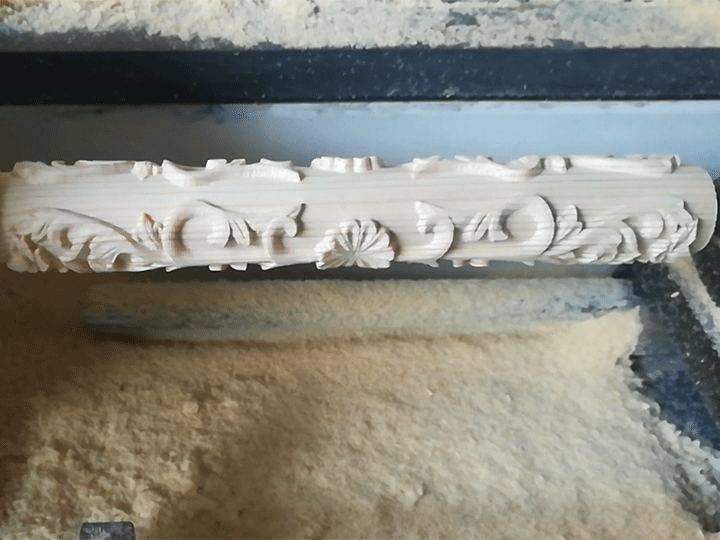

Music instrument: three-dimensional wood carving in relief and profile cutting
